ToolTip / Show on Event

Use the Tab key to move from one TextBox to the other and see how the RadToolTip opens on focus of the target control. Position the mouse over the Help button to recieve additional instructions. Left-click the Details link to open a RadToolTip with information about the image. Right-click the image to see the copyright statement.

Name:
Company:
E-mail:
Position:
Address:
image Details

  • ShowEvent Property


    RadToolTip offers the property ShowEvent which controls the type of event that triggers the showing of a tooltip. The possible values are:
    • OnMouseOver(Default) - RadToolTip appears on mouse over the target control
    • OnClick - RadToolTip appears on clicking with the left button of the mouse on the target control
    • OnRightClick - RadToolTip appears on right click with the mouse on the target control
    • OnFocus - RadToolTip appears on focus of the target control

    In this example a tooltip shows on right click with the mouse on Details for each image as well as on mouse over each picture.

Source Code

C# VB.NET
Show code in new window Demo isolation steps
  • <%@ Page Language="C#" AutoEventWireup="true" CodeFile="DefaultCS.aspx.cs" Inherits="Telerik.Web.Examples.ToolTip.ShowEvent.DefaultCS" %>

    <%@ Register TagPrefix="telerik" Namespace="Telerik.Web.UI" Assembly="Telerik.Web.UI" %>
    <%@ Register TagPrefix="qsf" Namespace="Telerik.QuickStart" %>
    <%@ Register TagPrefix="qsf" TagName="Header" Src="~/Common/Header.ascx" %>
    <%@ Register TagPrefix="qsf" TagName="HeadTag" Src="~/Common/HeadTag.ascx" %>
    <%@ Register TagPrefix="qsf" TagName="Footer" Src="~/Common/Footer.ascx" %>
    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">
    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
        <qsf:HeadTag ID="Headtag1" runat="server" />
        <style type="text/css">
            .ToolTipContent
            {
                color: black;
            }
        </style>
    </head>
    <body class="BODY">
        <form id="Form1" method="post" runat="server">
        <qsf:Header ID="Header1" runat="server" NavigationLanguage="c#" ShowSkinChooser="false" />
        <telerik:RadScriptManager ID="RadScriptManager1" runat="server">
        </telerik:RadScriptManager>

        <script type="text/javascript">

         // We need to keep the last tooltip with ShowEvent="OnFocus", as it might be closed
         // by the time the beforeunload event fires, but its target element might still have the
         // focus.
         var lastActiveToolTip = null;
         function OnClientShow(sender, args)
         {
         lastActiveToolTip = sender;
         }

            // When ShowEvent="OnFocus", the RadToolTip handles the blur event of the target element.
            // In case you set the focus on that element, e.g. click inside one of the TextBoxes,
            // and then immediately close the browser window, the blur event is fired before the
            // unload. Therefore, the framework tries to execute all handlers for the blur event.
            // However, at this point the document may have unloaded and we will get an "Unspecified error".
            // As the code that handles this is part of the ajax framework, we can workaround the problem
            // in the beforeunload handler - detach the handlers for the active tooltip.
            function beforeunload()
            {
                var activeTooltip = Telerik.Web.UI.RadToolTip.getCurrent();
                if(!activeTooltip) activeTooltip = lastActiveToolTip;
                if(activeTooltip)
                {
                    var targetElement = activeTooltip.get_targetControl();
                    activeTooltip._registerMouseHandlers(targetElement, false);
                }
            };

            if(Sys.Browser.agent == Sys.Browser.InternetExplorer)
            {
                window.attachEvent('onbeforeunload', beforeunload);
            }

        </script>

        <asp:Label Visible="false" ID="Label1" runat="server"></asp:Label>
        <telerik:RadToolTip runat="server" ID="RadToolTip1" Width="200px" ShowEvent="onmouseover"
            RelativeTo="Element" Animation="Resize" TargetControlID="link1" IsClientID="true" EnableShadow="true"
            HideEvent="LeaveTargetAndToolTip" Position="TopRight" Text="Use the Tab key to move from one TextBox to the other and see how the RadToolTip opens on focus of the target control." />
        <telerik:RadToolTip ID="RadToolTip2" runat="server" Width="100px" ShowEvent="OnClick"
            TargetControlID="link2" IsClientID="true" HideEvent="LeaveToolTip" Position="Center" EnableShadow="true"
            Animation="Resize" ShowDelay="0" RelativeTo="Element" Text="Right-click on the picture above to show the RadToolTip." />
        <telerik:RadToolTip ID="RadToolTip3" runat="server" TargetControlID="imgRightClick"
            IsClientID="true" RelativeTo="Element" ShowEvent="OnRightClick" HideEvent="LeaveTargetAndToolTip" EnableShadow="true"
            Animation="Fade" ShowDelay="10" Width="100" Height="100" Position="TopRight"
            Text="Copy right protected." />

        <script type="text/javascript">

            function Hilite(me, focus)
            {
                me.style.backgroundColor = false != focus ? "#ffffcc" : "white";
            }

            </script>
            <telerik:RadToolTipManager runat="server" ID="RadToolTip5" EnableShadow="true"
                ShowEvent="OnFocus"
                OnClientShow="OnClientShow"
                Skin="Default"
                ShowDelay="200"
                AutoCloseDelay="5000"
                Width="300px"
                Position="MiddleRight"
                RelativeTo="Element">
                <TargetControls>
                    <telerik:ToolTipTargetControl TargetControlID="txtFirstName" />
                    <telerik:ToolTipTargetControl TargetControlID="txtCompany" />
                    <telerik:ToolTipTargetControl TargetControlID="txtEmail" />
                    <telerik:ToolTipTargetControl TargetControlID="txtPosition" />
                    <telerik:ToolTipTargetControl TargetControlID="txtAddress" />
                </TargetControls>
            </telerik:RadToolTipManager>

             <p>
                Use the Tab key to move from one TextBox to the other and see how the RadToolTip opens on focus of the target control.
                Position the mouse over the Help button to recieve additional instructions. Left-click the Details link to
                open a RadToolTip with information about the image. Right-click the image to see the copyright statement.
             </p>
                <div style="background:url(Img/bg.gif) no-repeat; width: 350px;height:300px;padding:27px 0px 50px 43px;float:left;">
                <a id="link1" href="#"><img src="Img/help.gif" alt="" style="border:0;margin-left:190px;margin-bottom:87px;"/></a>
            <table style="font-size:11px;">
                <tr>
                    <td>
             <asp:Label ID="lblFirstName" runat="server" Text="Name: "></asp:Label>
             </td>
             <td>
    <asp:TextBox ID="txtFirstName" onfocus="Hilite(this)" onblur="Hilite(this, false)"
    TabIndex="1" runat="server" ToolTip="Please, fill in first name, familiy name and any other initials or titles."></asp:TextBox>
                   </td>
         </tr>

         <tr>
                    <td>
             <asp:Label ID="lblCompany" runat="server" Text="Company: "></asp:Label>
             </td>
             <td>
    <asp:TextBox ID="txtCompany" TabIndex="2" runat="server"
    onfocus="Hilite(this)" onblur="Hilite(this, false)"
    ToolTip="Company name should be spelled out with proper capitalization."
    ></asp:TextBox>
         </td>
         </tr>

         <tr>
                    <td>
         <asp:Label ID="lblEmail" runat="server" Text="E-mail: "></asp:Label>
         </td>
             <td>
    <asp:TextBox ID="txtEmail" TabIndex="3" runat="server"
    onfocus="Hilite(this)" onblur="Hilite(this, false)"
    ToolTip="It is possible to list more than one email, separated by comma."
    ></asp:TextBox>
         </td>
         </tr>

         <tr>
                    <td>
         <asp:Label ID="lblPosition" runat="server" Text="Position: "></asp:Label>
         </td>
             <td>
    <asp:TextBox ID="txtPosition" TabIndex="4" runat="server"
    onfocus="Hilite(this)" onblur="Hilite(this, false)"
    ToolTip="Please list current position, followed by previous positions at the company, separated by commas."
    ></asp:TextBox>
         </td>
         </tr>

         <tr>
                    <td>
         <asp:Label ID="lblAddress" runat="server" Text="Address: "></asp:Label>
         </td>
             <td>
    <asp:TextBox ID="txtAddress" TabIndex="5" runat="server"
    onfocus="Hilite(this)" onblur="Hilite(this, false)"
    ToolTip= "Your current snail mail adrress."
    ></asp:TextBox>
         </td>
         </tr>
         <tr><td></td>
         <td>

         <asp:Button id="btnSubmit" Text="Submit" runat="server" CssCLass="button"/>
         </td>
         </tr>
         </table>

         </div>

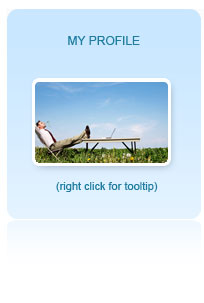

         <img id="imgRightClick" src="Img/rightClick.jpg" style="border:0;" alt="image" />
            <a id="link2" href="#" onclick="return false;"> Details </a>
            <qsf:footer runat="server" id="Footer1"/>
        </form>
    </body>
    </html>
